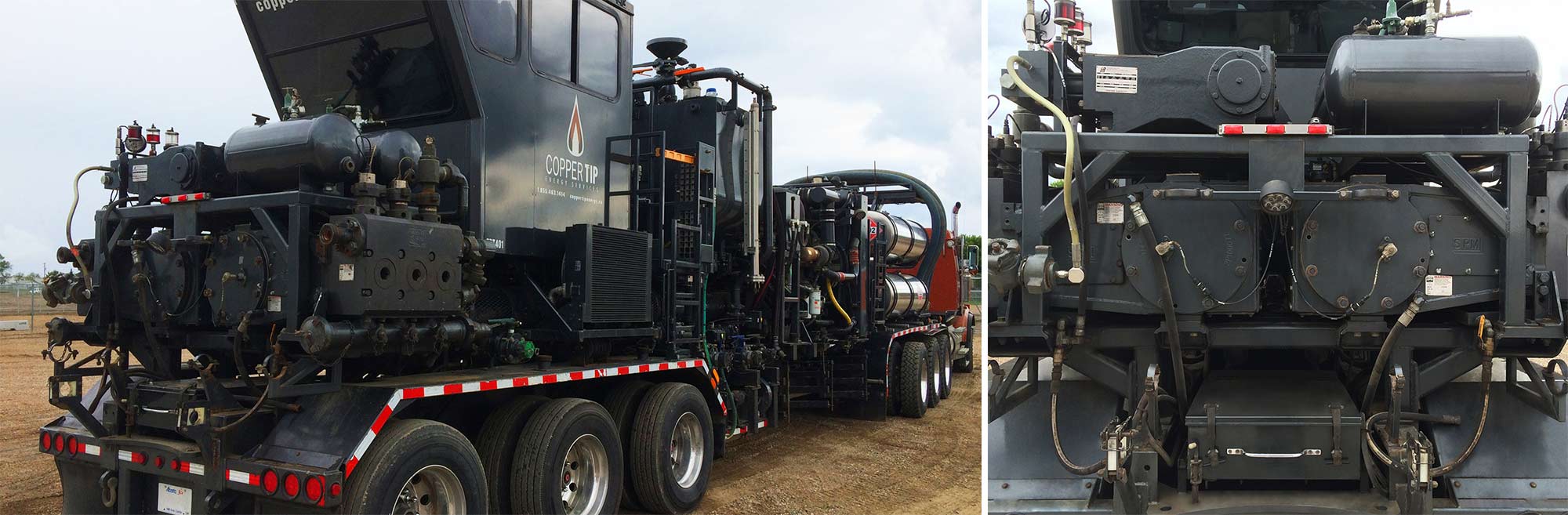

This twin fluid and acid pumper has a double triplex pumping unit mounted to a custom built tridem trailer. It combines the benefits of maneuverability with a wide range of flow rates with automated flow meters, pressure control, mobile data tech recording system, and pressurized operators cab with dual pump controls.

Equipment Features

  • Two Cummins QSX15 (600HP) engines
  • One Cummins QSL9 (300HP) engine with pump pad
  • Two SPM 600 triplex pumps (3.5" fluid ends)
  • One Gardner Denver TY 300M jet pump (15,000 psig)
  • Three hydraulically driven 3x4 centrifugal mission pumps
  • 3m³ tank with two 1.5m compartments closed with hatches, lined steel tank
  • Control cab with heating and air conditioning
  • One progressive cavity chemical add pump with E&H flowmeter
  • Mobile data tech pressure recording

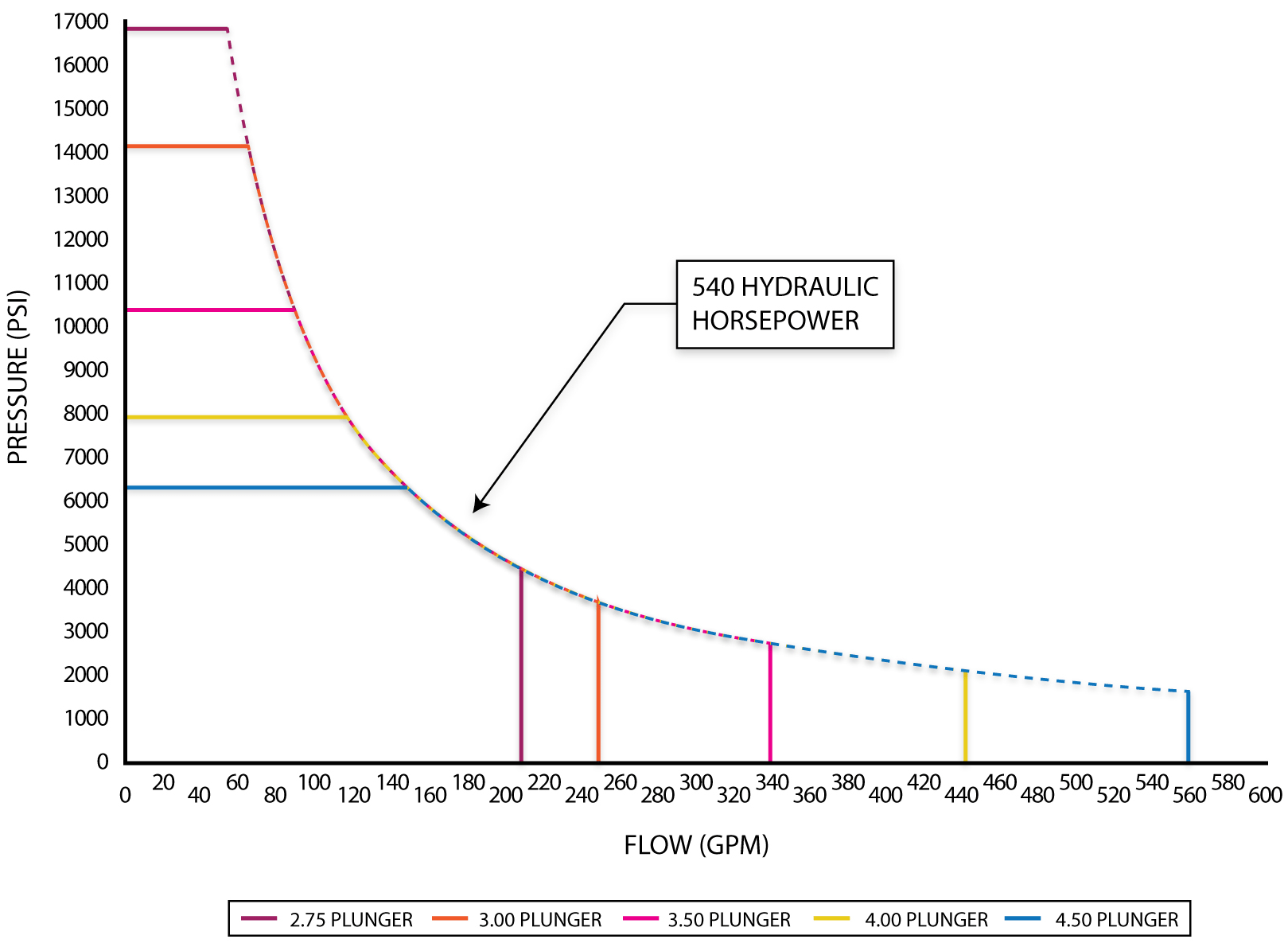

twinPumpHydraulicCurveChart

Performance Specifications

Maximum Flow Rate: 1.8 m³/min
Maximum Discharge Pressure: 70,000 kPa
Plunger Size: 3.5 In
Manufacturer: Stewart & Stevenson
Maximum Length: 23 m
Maximum Width: 2.6 m
Maximum Height: 4.13 m
Gross Vehicle Weight: 46,000 kg
