Tandem Steer, Tri-Drive
Body Job Coil Tubing Units
Hydraco-built body job coil tubing units with three working reels and an onboard 600 CFM Cummins 903 compressor. Compact and maneuverable, suited for workover operations, wellbore cleanouts, and production work on conventional wells.
Equipment Features
- WD30 injector, 30,000 lb continuous pull
- 1.5" (38.1mm) coil, 3,200 m / 1.75" (44.5mm) coil, 2,550 m
- 5"-5K Combi BOP w/ Lubricator
- 600 CFM onboard compressor, Cummins 903 engine
- Rated speed: 50 m/min (LOW) / 100 m/min (HIGH)
- Catch tank and limitless lubricator length
- Tandem steer tri-drive configuration
WD30, 30,000 lb
Injector
5,000 PSI
Max Pressure
38.1mm, 3,200 m
Coil Capacity (1.5")
Tridem, Trailer Mounted
Deep Conventional Coil Tubing Units
Tridem trailer-mounted coil tubing units designed for conventional deep well operations. Equipped with the HydraRig 80,000 lb injector head and the full NOV HMI / Cerberus / OrionNET monitoring suite.
Equipment Features
- 60.3mm (2-3/8") coil tubing string
- Service depth to 6,650 m
- HydraRig 80,000 lb injector head
- Quad Combi BOP 5-1/8", 70 MPa (10,000 psi)
- 2" treating iron, 15,000 psi rated
- NOV HMI control system
- Cerberus / OrionNET data acquisition
60.3mm (2-3/8")
Coil Size
6,650 m
Service Depth
HydraRig 80,000 lb
Injector
Tridem, Trailer Mounted
High Capacity Coil Tubing Units
High-capacity coil tubing units for extended-reach and high-pull operations. The HR-6100 injector delivers 100,000 lb of continuous pull and accommodates multiple coil string sizes, from 2-7/8" at 3,700 m to 2-3/8" at 7,500 m depth.
Equipment Features
- Multiple coil tubing string sizes: 2", 2-3/8", 2-7/8"
- Maximum depth 7,500 m on 2-3/8" string
- HR-6100 injector, 100,000 lb continuous pull
- Quad Combi BOP 5-1/8", 70 MPa (10,000 psi)
- NOV HMI control system
- Cerberus / OrionNET data acquisition
- Tridem trailer configuration
50.8mm, 5,800 m
Service Depth (2")
60.3mm, 7,500 m
Service Depth (2-3/8")
73.0mm, 3,700 m
Service Depth (2-7/8")
Tridem, US Operations
3 Mile Lateral Reach Coil Tubing Units
A 3 mile lateral reach coil tubing unit based in Williston, North Dakota. The two-piece HR-6140 unit delivers 140,000 lb of continuous pull with up to 28,000 ft of 2-3/8" coil. Purpose-built for high-reach horizontal wellbore operations across the Williston Basin.
Equipment Features
- HR-6140 injector, 140,000 lb continuous pull
- 60.3mm (2-3/8") coil, 28,000 ft service depth
- Current string: 28,300' 2.375" HT110
- Quad Combi BOP 5-1/8", 10K psi
- 200T Liebherr crane
- NOV HMI / Cerberus / OrionNET data acquisition
- 2-piece hydraulic power pack / reel trailer
60.3mm, 28,000 ft
Service Depth (2-3/8")
HR-6140, 140,000 lb continuous pull
Injector
Quad Combi 5-1/8", 10K psi
BOP
Truck-Mounted

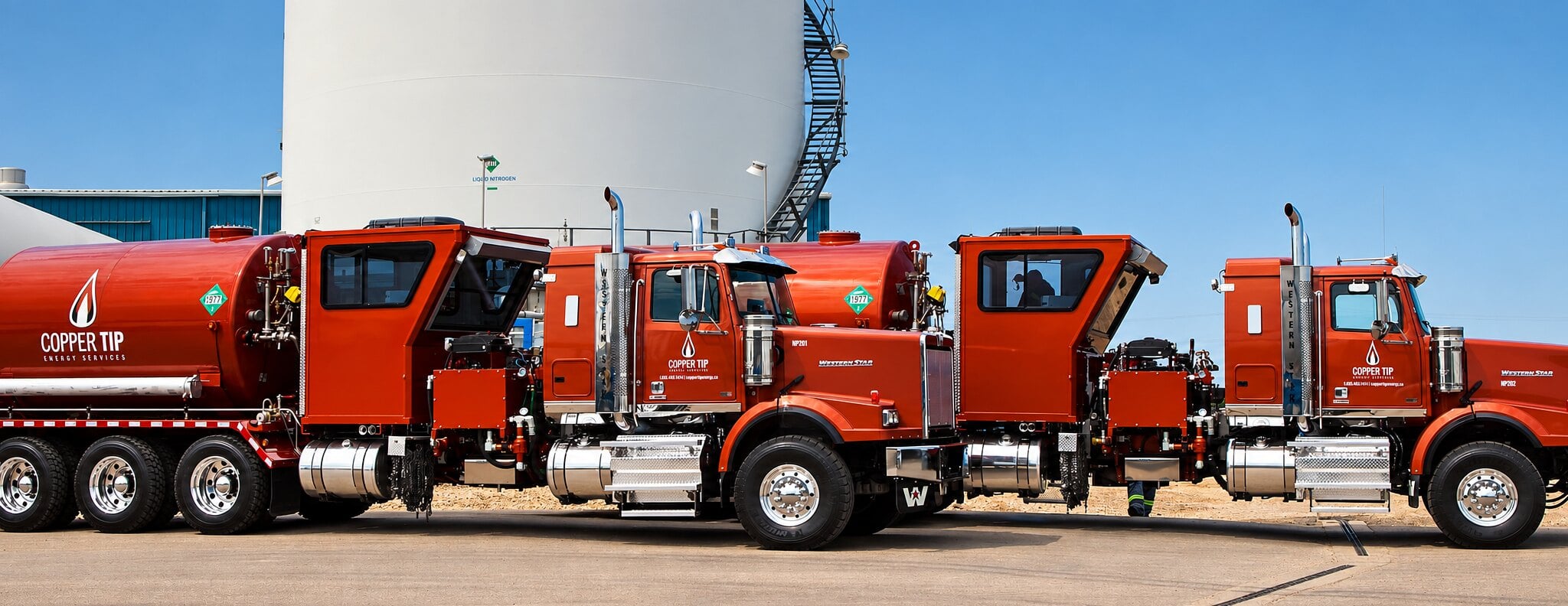

Flameless Nitrogen Pumps
Flameless nitrogen pumping units for use in enclosed facilities, compressor stations, and areas where open flame is restricted. A hydraulic water brake heat exchanger converts liquid nitrogen without combustion, with outputs up to 70 m³/min at 70,000 kPag.
Equipment Features
- 30 – 70 m³/min max flow rate
- 69,000 – 70,000 kPag max discharge pressure
- Flameless, hydraulic water brake heating
- No open flame, meets enclosed facility requirements
- 2,500 – 7,000 m³ onboard LN₂ storage
- -20 to +60 °C operating range
- Truck-mounted for rapid deployment
30 – 70 m³/min
Max Flow Rate
69,000 – 70,000 kPag
Max Discharge Pressure
Flameless, Hydraulic Water Brake
Heat Source
Truck- or Trailer-Mounted
Direct-Fired Nitrogen Pumps
Direct-fired nitrogen pumping units for mid- to high-volume wellbore, pipeline, and facility applications. CryoQuip and HydraRig direct-fired vaporizers deliver sustained output at elevated temperatures, with flow rates up to 420 m³/min and pressures to 105,000 kPag (15,000 psig).
Equipment Features
- 250 – 420 m³/min max flow rate
- 70,000 – 105,000 kPag max discharge pressure (to 15,000 psig)
- CryoQuip and HydraRig direct-fired vaporizers
- Supply temperature up to +340 °C
- 2,000 – 8,000 m³ onboard LN₂ storage
- Truck- and trailer-mounted options
250 – 420 m³/min
Max Flow Rate
70,000 – 105,000 kPag (to 15,000 psig)
Max Discharge Pressure
Direct Fired, CryoQuip / HydraRig
Heat Source
Trailer-Mounted
Nitrogen Vaporizers
Low-pressure nitrogen vaporizers for applications requiring controlled gaseous nitrogen delivery without high discharge pressure. Electrical or ambient heating converts liquid nitrogen at up to 150 Sm³/min, suited for low-pressure purging and inerting operations. Single-operator design.
Equipment Features
- 150 Sm³/min max flow rate
- 2,750 kPag (400 psig) max discharge pressure
- Electrical / ambient heat exchanger
- No open flame, flameless operation
- Single-operator design
- Trailer-mounted for rapid deployment
150 Sm³/min
Max Flow Rate
2,750 kPag (400 psig)
Max Discharge Pressure
Electrical / Ambient
Heat Source
Trailer-Mounted
Low-Pressure Vaporizers
Low-pressure trailer-mounted vaporizer units for nitrogen purging applications where simplicity and site mobility matter. Loaded directly from nitrogen bulkers, no nitrogen pumper required. Compact enough to reposition on-site without a tractor.
Equipment Features
- 1,200 Sm³ gaseous nitrogen storage
- 50 psig maximum allowable working pressure
- Ambient vaporizer, no combustion source
- Loaded from nitrogen bulkers, no pumper required
- Can be repositioned on-site without a tractor
- Gaseous nitrogen relief valve protection
1,200 Sm³
Storage Capacity
50 psig
MAWP
Ambient
Discharge Temperature
Truck-Mounted
Single Fluid Pumps
Self-contained truck-mounted fluid pumping units with dual-compartment tanks and triplex pumps. They combine site mobility with automated flow meters, pressure control, and data recording, with stainless-compatible options available for corrosive service.
Equipment Features
- 5,000 – 8,000 L primary storage tank
- 2,000 L secondary / methanol compartment
- Serva TPD600 or SPM TWS600S triplex pump
- Stainless-compatible options for corrosive service
- Centrifugal pressurizer and on-site transfer pump
- Automated flow meters and pressure control
- Data acquisition system
- Truck-mounted for rapid deployment and site mobility
600 – 700 L/min
Max Flow Rate
up to 69,000 kPa
Max Discharge Pressure (Iron)
21,000 kPa
Max Discharge Pressure (Hose)
Tridem Trailer-Mounted
Twin 600HP Triplex Pumps
Tridem trailer-mounted twin fluid pumping units powered by two Cummins QSX15 600HP engines. High-volume output for large-scale pipeline flooding, wellbore injection, and hydrostatic testing. Available with 4.0" or 4.5" plunger configurations.
Equipment Features
- 2× Cummins QSX15 600HP prime movers
- 1× Cummins QSL9 300HP auxiliary engine
- 2× SPM 600 Triplex pumps
- Available in 4.0" and 4.5" plunger configurations
- MDT pressure recording system
- Tridem trailer, heavy-haul configuration
1.7 m³/min
Max Flow Rate (4.0")
2.2 m³/min
Max Flow Rate (4.5")
52,000 kPa (7,500 psig)
Max Discharge Pressure
Tridem Trailer-Mounted
Twin 1,000HP Quintuplex Pumps
High-pressure tridem trailer-mounted units with twin CAT C27 950HP engines and JEREH 1000QS quintuplex pumps rated to 103,400 kPa (15,000 psig). Purpose-built for high-pressure wellbore applications including high-rate acid jobs and cement operations.
Equipment Features
- 2× CAT C27 950HP prime movers
- JEREH 1000QS Quintuplex w/ 3" plungers
- Rated to 103,400 kPa (15,000 psig)
- 5 m³ mix tank, 2 compartments
- Full data acquisition suite
- Tridem trailer configuration
2.4 m³/min
Max Flow Rate
103,400 kPa (15,000 psig)
Max Discharge Pressure
2× CAT C27 950HP
Engines
Tridem Trailer-Mounted
Pump Down Units
High-rate continuous-duty pump down units powered by MTU 16V 4000 Series 2,500 HP engines. Gardner Denver and SPM stainless steel continuous-duty triplex and quintuplex fluid ends handle corrosive service, delivering up to 2.4 m³/min at 82,740 kPa (12,000 psig).
Equipment Features
- MTU 16V 4000 Series, 2,500 HP
- Gardner Denver WT2400 SS triplex or SPM QWS2500SS SS quintuplex
- Stainless steel fluid ends for corrosive / acid service
- Up to 2.4 m³/min at 82,740 kPa (12,000 psig)
- 2" or 3" FIG 1502 treating iron
- MDT local panel or remote laptop operating system
- Full data recording, tridem trailer mounted
1.6 – 2.4 m³/min
Max Flow Rate
82,740 kPa (12,000 psig)
Max Discharge Pressure
MTU 16V 4000 Series, 2,500 HP
Engine
Tridem, Trailer Mounted
Acid Bulk Transport Trailers
TankCon FRC DOT 412 acid-lined fibreglass bulk transport trailers for hauling hydrochloric acid and other corrosive oilfield chemicals. TDG-certified for dangerous goods transport across Canada and the United States. 4" Bowie offload pump for on-site transfer.
Equipment Features
- 26,000 – 30,000L acid storage capacity
- DOT 412 acid-lined fibreglass tank construction
- TankCon FRC INC, purpose-built for corrosive service
- 4" Bowie offload pump
- TDG-certified for Canada and USA
- Tridem trailer, 54,000 kg GVW
- Cross-border dangerous goods compliant
26,000 – 30,000 L
Storage Capacity
DOT 412 acid-lined fibreglass
Tank Construction
TankCon FRC INC
Manufacturer
Tridem, Trailer Mounted
Stainless Bulk Trailers
Polar-built DOT 407 T316 stainless steel dual-compartment bulk trailers for transporting stainless-compatible chemical and fluid loads. Digital gauges and a 4" T&E pump allow for accurate load monitoring and on-site offloading.
Equipment Features
- DOT 407 T316 stainless steel pressurized tank
- Dual compartment configuration
- Digital gauges for accurate load level monitoring
- 4" T&E offload pump
- Polar-built for demanding oilfield service
- Tridem trailer, 54,300 kg GVW
DOT 407 T316 Stainless Steel
Tank Construction
32,180 kg
Storage Capacity
54,300 kg
Gross Vehicle Weight
Tandem, Pickup-Towable
Pickup-Towable Emergency Shower Units
Fully self-contained emergency shower and eye wash trailers, built by Blackrain Industries and towable behind a pickup. Each unit meets ANSI/ISEA Z358.1-2014 requirements and carries a single shower head with drench hose, an eye wash station, 2,200 L of onboard water and a 9 kW generator. Included on every Copper Tip acid operation.
Equipment Features
- Meets ANSI/ISEA Z358.1-2014 requirements
- Single shower head with drench hose
- Eye wash station
- 2,200 L onboard water storage
- 9 kW power generator
- SCBA with Scott AV-2000 (L) mask
- Fully self-contained, tandem trailer towable by pickup
2,200 L
Storage Capacity
1 shower + 1 eye wash
Washing Stations
6.5 m
Maximum Length
Single Axle, Truck-Mounted
Truck-Mounted Emergency Shower Units
Truck-mounted emergency shower and eye wash units for locations where a larger crew needs more capacity. Four shower and eye wash stations with drench hoses run off 4,000 L of onboard water, driven from the truck PTO with a 9 kW generator as backup.
Equipment Features
- Four shower and eye wash stations with drench hoses
- 4,000 L onboard water storage
- PTO driven, with 9 kW backup generator
- SCBA with Scott AV-2000 (L) mask
- Self-contained on a single axle truck chassis
- Drive-to-location deployment, no tow vehicle required
4,000 L
Storage Capacity
4 showers + 4 eye washes
Washing Stations
8.7 m
Maximum Length
Portable, Skid / Wheel-Mounted
Vapour Phase Injection Pumps
Portable low-rate chemical injection pumps for vapour phase cleaning operations during plant turnarounds. They connect to existing steam or gas supply via ½" high-pressure hose. No large equipment, fluid volumes, or significant system modifications required. Multiple units can be deployed simultaneously across a turnaround.
Equipment Features
- Low-rate chemical injection into steam or gas carrier
- ½" high-pressure hose connection
- Connects to existing facility steam or gas supply
- Compact skid or wheel-mounted for confined environments
- Multiple units deployable simultaneously
- No large fluid volumes or containment required
- Integrates with nitrogen inerting and purging operations
Low-rate chemical injection into steam or gas carrier
Operation
½" high-pressure hose
Connections
Compact, suited for confined turnaround spaces
Footprint
Trailer-Mounted
On-Site Chemical Trailers
Self-contained on-site chemical injection trailers for acidizing and chemical stimulation operations. Each carries multiple chemical totes and an on-board generator powering four independent injection pumps, each with its own rate meter and 50-foot hose. A Rough Neck heater maintains chemical temperatures in winter field conditions.
Equipment Features
- 3× 1,200L chemical totes + 1× 400L tote
- 4 independent injection pumps, 0.1 to 5 L/min each
- 4× 50' chemical hoses + 1× 75' fuel hose
- 25 HP on-board generator
- Rate metering system on each pump
- Rough Neck heater for cold-weather operations
- 3,000L onboard diesel fuel capacity
5 L/min
Max Flow Rate
0.100 L/min
Min Flow Rate
50 psi
Max Discharge Pressure
Trailer-Mounted
Nitrogen Storage Queen
Self-contained nitrogen storage unit built around a 55,000 m³ liquid nitrogen storage tank, electric boost pump, and pressure-build vaporiser. Combines large-volume on-site nitrogen storage with the maneuverability of a standard trailer.
Equipment Features
- 55,000 m³ (1,945,000 scf) nitrogen storage capacity
- ACD 2"x4"x6" electrically driven centrifugal pump
- Kubota V-3600 diesel engine
- Onboard cryogenic load hose
- Pressure release valves on storage tank
- Visual monitoring gauges for tank volume and pressure
- Touch screen operation
55,000 m³ (1,945,000 scf)
Storage Capacity
290 kPag (42 psig)
Max Tank Pressure
30,617 kg (67,498 lb)
Gross Vehicle Weight
Trailer-Mounted
Nitrogen Storage King
Self-contained nitrogen storage unit built around a 70,000 m³ liquid nitrogen storage tank, electric boost pump, and pressure-build vaporiser. The largest on-site nitrogen storage capacity in the fleet, combining maximum on-site storage with full trailer maneuverability.
Equipment Features
- 70,000 m³ nitrogen storage capacity
- ACD 2"x4"x6" electrically driven centrifugal pump
- Kubota V-3600 diesel engine
- Onboard cryogenic load hose
- Pressure release valves on storage tank
- Visual monitoring gauges for tank volume and pressure
- Touch screen operation
70,000 m³
Storage Capacity
290 kPag (42 psig)
Max Tank Pressure
30,617 kg (67,498 lb)
Gross Vehicle Weight
Pickup-Towable
High Pressure Tube Trailers
High-pressure nitrogen tube trailers compact enough to be towed by a pickup truck. Popular for clients who require a small, steady nitrogen supply over an extended period. Available for rental. Nine tubes provide 900 Sm³ at 43,000 kPag (6,250 psig).
Equipment Features
- 9 high-pressure nitrogen storage tubes
- 900 Sm³ (32,000 scf) total storage
- 43,000 kPag (6,250 psig) max discharge pressure
- Towed by a standard pickup truck
- Variable pressure / flow options
- Available for rental, suited for extended operations
9
Number of Tubes
900 Sm³ (32,000 scf)
Storage Capacity
43,000 kPag (6,250 psig)
Max Discharge Pressure
Trailer-Mounted
Tube Trailers
Seamless steel gaseous nitrogen tube trailers for supplemental nitrogen supply at wellsite and facility locations. Configurations from 22 to 34 tubes deliver 1,000 – 1,360 m³ at working pressures up to 17 MPa (2,450 psig), trailer-mounted for rapid deployment and site mobility.
Equipment Features
- 22 – 34 seamless steel tubes
- 1,000 – 1,360 m³ total gaseous nitrogen storage
- Up to 17 MPa (2,450 psig) working pressure
- Pressure regulator for specific pressure supply
- Gaseous nitrogen relief valve protection
- Trailer-mounted for rapid deployment
22 – 34
Number of Tubes
1,000 – 1,360 m³
Storage Capacity
up to 17 MPa (2,450 psig)
Max Working Pressure
Trailer-Mounted
54 Cylinder Tube Trailers
High-volume 54-cylinder gaseous nitrogen trailers for large supplemental nitrogen requirements. They provide 2,400 m³ at 2,640 psig, suited for operations requiring sustained nitrogen supply without continuous LN₂ delivery.
Equipment Features
- 54 seamless steel cylinders
- 2,400 m³ total gaseous nitrogen storage
- 2,640 psig maximum discharge pressure
- Pressure regulator for specific pressure supply
- Gaseous nitrogen relief valve protection
- Trailer-mounted for rapid deployment
54
Number of Cylinders
2,400 m³
Storage Capacity
2,640 psig
Max Discharge Pressure
Trailer-Mounted
Jumbo Tube Trailers
Large-capacity high-pressure gaseous nitrogen tube trailers with 8 jumbo tubes, providing 4,000 m³ at 3,100 psig per load.
Equipment Features
- 8 jumbo seamless steel tubes
- 4,000 m³ total gaseous storage
- 3,100 psig working pressure
- Trailer-mounted
8
Number of Tubes
4,000 m³
Storage Capacity
3,100 psig
Max Working Pressure
Trailer-Mounted
Nitrogen Bulkers
Bulk liquid nitrogen transport trailers for large-volume LN₂ delivery to wellsite and plant locations. They supply nitrogen pumping units on site, enabling sustained operations beyond individual unit storage capacity. Onboard boost pump for rapid offloading.
Equipment Features
- 24,500 m³ LN₂ storage capacity
- 620 kPag (90 psig) max tank pressure
- Onboard boost pump for rapid offloading
- Onboard cryogenic load hose
- Pressure release valves on storage tank
- Visual monitoring gauges for tank volume and pressure
24,500 m³
Storage Capacity
620 kPag (90 psig)
Max Tank Pressure
54,300 kg
Gross Vehicle Weight
Service You Can Count On
Our team can walk you through equipment availability, specifications, and deployment options for your location and application.
