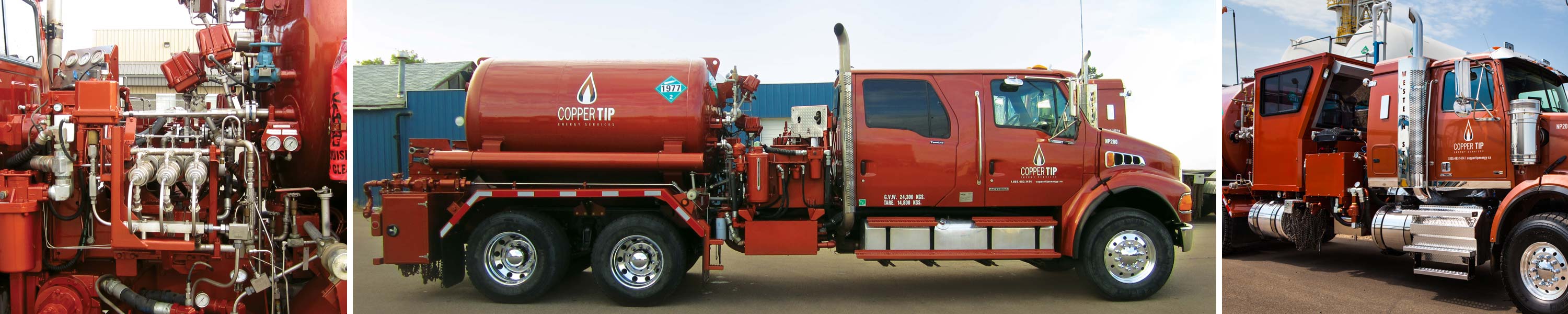

This fully self-contained truck mounted nitrogen pumping unit consists of a liquid nitrogen storage tank, non-fired heat exchanger, and cryogenic pumping equipment. It combines the benefits of maneuverability with a wide range of nitrogen flow rates, temperatures, pressure and onboard nitrogen storage. A flameless heat source eliminates potential ignition source and harmful emissions for use in environments where elimination of an open flame is preferred.

Equipment Features

  • Flameless heat exchanger
  • Variable temperature / pressure / flow options
  • Onboard treating iron & high pressure hose
  • Truck mounted for rapid deployment & site mobility
  • Liquid nitrogen relief protection
  • Gaseous nitrogen relief protection

Performance Specifications

Maximum Flow Rate: 85 m³/min
Maximum Discharge Pressure: 150 to 70,000 kpag
Heat Source: Hydraulic Water Brake
Supply Temperature: -20 to +60 °C
Storage Capacity: 7,000 m³
Maximum Length: 12.574 m
Maximum Width: 2.590 m
Maximum Height: 3.900 m
Gross Vehicle Weight: 31,560 kg
Tare Weight: 23,030 kg
