Deep High Capacity Coiled Tubing

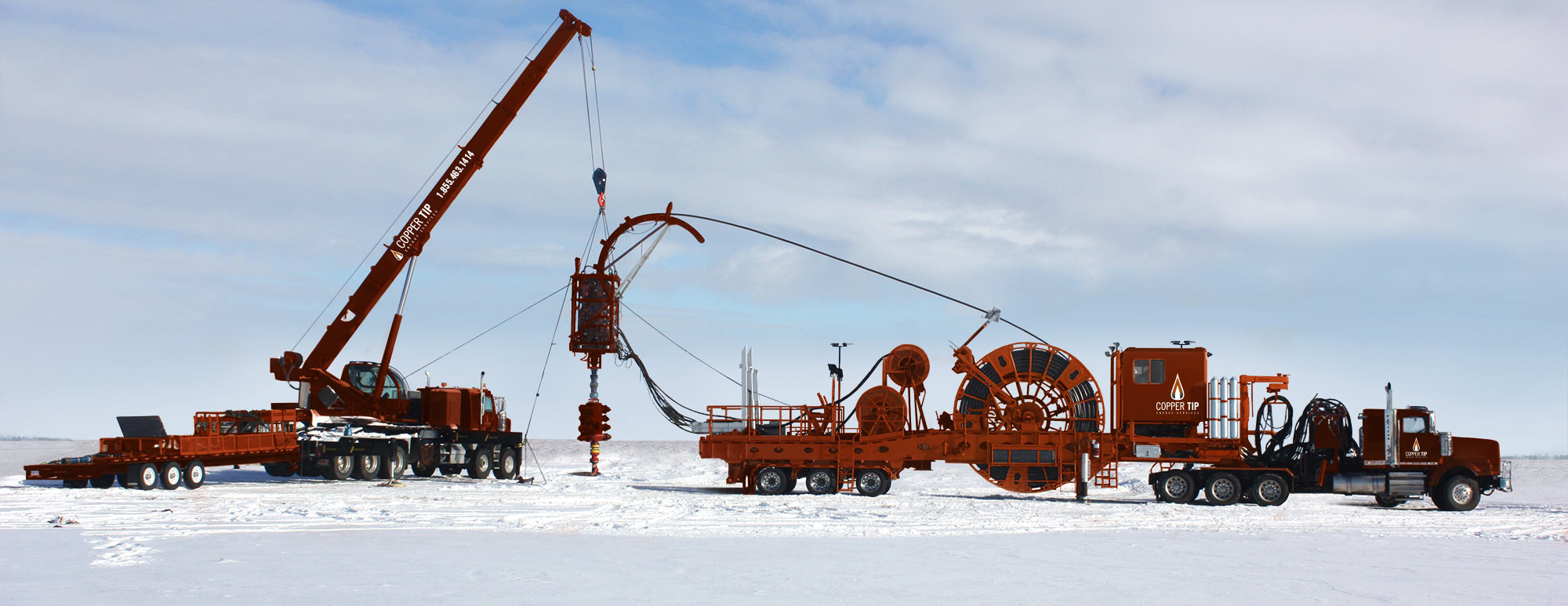

Copper Tip is excited to add to our fleet a brand new deep high capacity conventional coiled tubing unit. This unit is equipped with a Hydra Rig HR-6100 Injector – designed to handle CT sizes from 1-1/2” OD through 3-1/2” OD. It is designed for operation with both open and closed loop hydraulic systems. It is capable of up to 100,000 lbs continuous pull capacity at 4,600 psi. Additionally, the unit is able to hold up to 7,500m of 2-3/8” OD coiled tubing.

Equipment Features

  • Features
  • Large diameter pipe
  • Class III Bops with 10k striper and 10k well assist tandem stripper
  • Hydra Rig Injector capable of 100K lbs pull
  • Orion and Cerberus real time Data accusation
  • 2 inch treating iron with 15k pressure
  • Capable of running controls at rear of unit
  • Applications
  • Milling
  • Wellbore Cleanout
  • Acid Stimulations and Fracturing
  • Fishing
  • Confirmation Runs
  • Hanging Strings
  • Configuration Options
  • Tridem Tractor
  • 16 Wheel Jeep
  • 24 Wheel Trailer
  • 8 Wheel Booster

Performance Specifications

BOP Configuration Quad Combi 5-1/8" – 70 MPa
Crane/Picker: Manitex 4596T
Instrumentation: NOV HMI – Real Time
Average Rig In Time: 4 Hours
Service Depth: 50.8mm (2.000") 5800m
Service Depth: 60.3mm (2.375") 7500m
Service Depth: 73.03mm (2.875") 3700m
Injector: HR 6100, 100K Lbs Cont. Pull
Data Management: Cerberus & OrionNET (NOV)
Stripping Head: Forum 70 MPa
